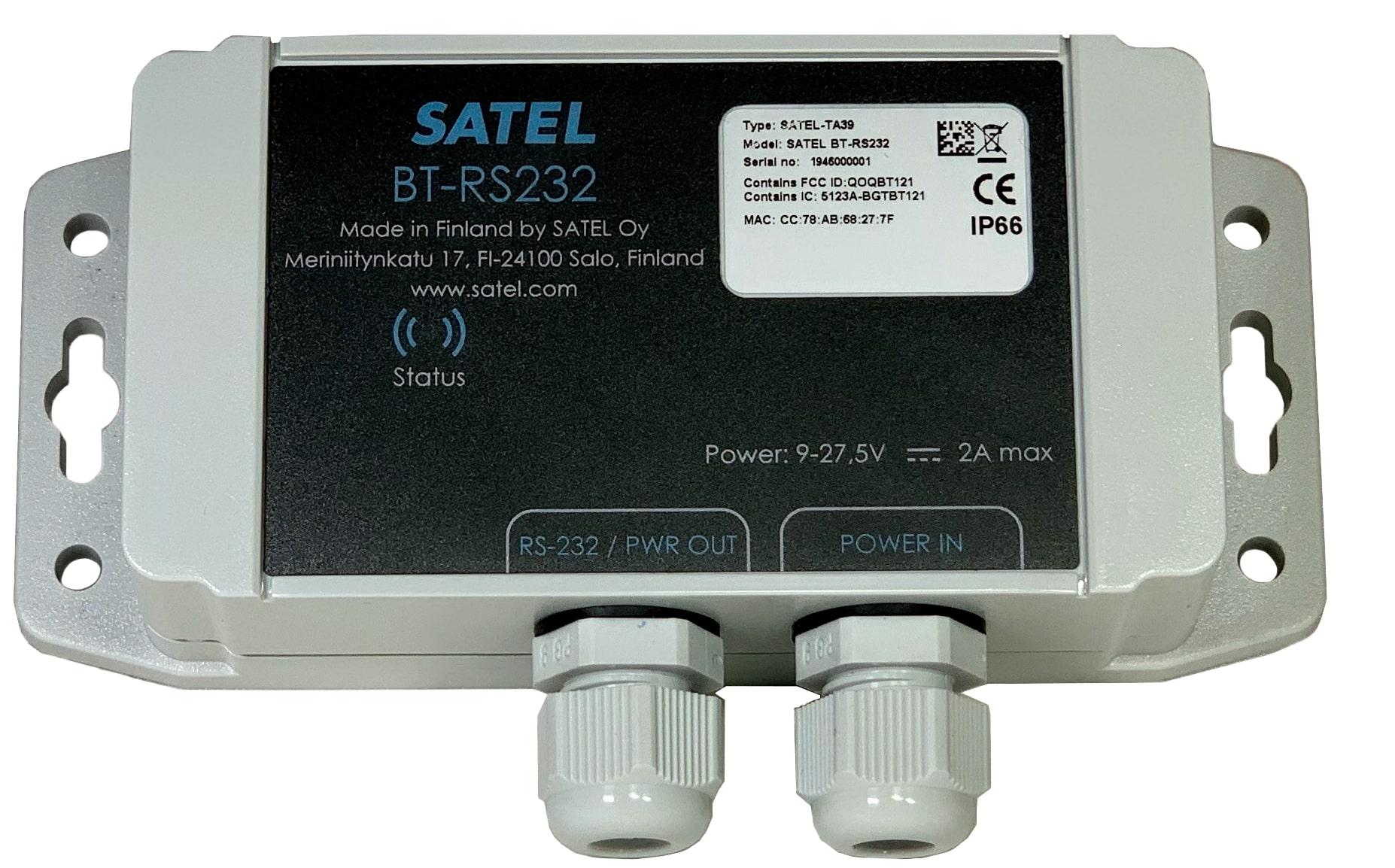

SATEL BT-RS232 is an IP66-rated robust and waterproof Bluetooth to RS-232 serial port adapter.
SATEL BT-RS232 is equipped with long range Bluetooth 2.1, that offers connection distances upto 400 meters.
Radio’s integrated antenna saves space and makes it possible to install the adapter into a tight installation place.
SATEL BT-RS232 offers a compact and easily integrable solution for devices that needs to communicate without a cable connections.
The radio module of SATEL BT-RS232 is accessed through an UART interface, which makes the programming easy. Product offers also optional GPIO interface for the future needs.
The power consumption of SATEL BT-RS232 is low, therefore it suits well also for applications where the power feed is limited.
Radio requirements
Radio parameters, EMC and Safety, are in accordance with the national requirements. Radio is currently type approved for Europe, USA, Canada, China and Russia.
Product code:
YI0232 SATEL BT-RS232 adapter
CONTACT US
Data module
| Electrical interface | RS232 |
| Interface connector | Phoenix 7-pin |
| Data speed of serial interface | 115200 bps |
| TX power | +12 dBm with Bluetooth BR/EDR |
| RX sensitivity | -96 dBm |
| Operation mode | Slave mode |
General
| Operating voltage | +9…+27.5Vdc(-15%/+20%) |
| Fuse requirement | 2A |
| Typical power consumption | Adapter < 1 W Supply to sensor: 15 W max |
| Inrush current, power turned ON | < 12A, duration < 50μs |
| Temperature range | Type approval conditions: -20 °C … +55 °C Functional: -40 °C …+70 °C Storage: -40 °C …+85 °C |
| Vibration | Up to 5G |
| IP rating | IP66 |
| Construction | Polycarbonate case |
| Size L x W x T | 151 x 66 x 43 mm |
| Weight | 192 g |
