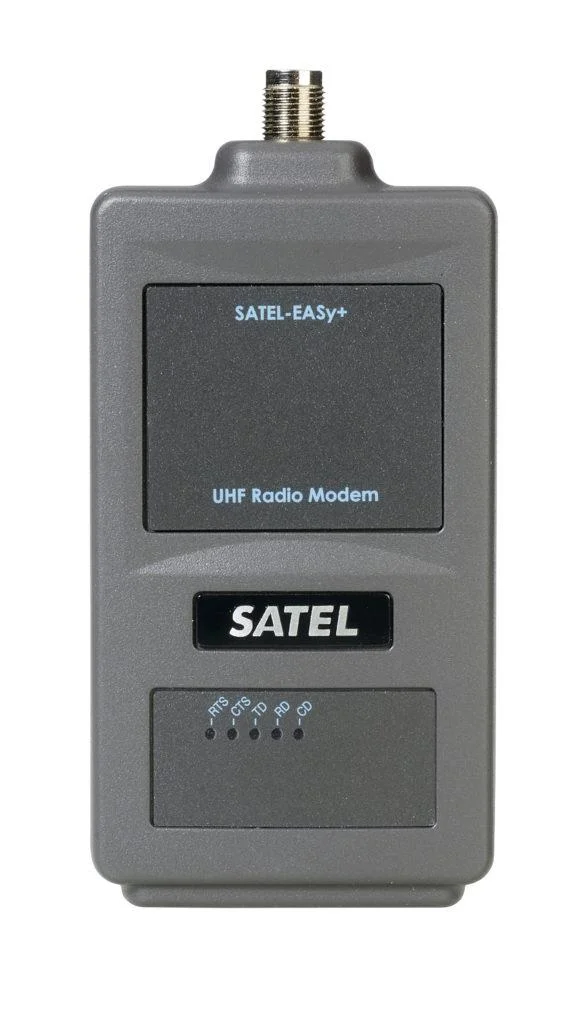

SATEL’s new product family, SATEL-EASy+!
SATEL-EASy+ offers a modern solution for various long-range applications. SATEL-EASy+ is available on two different frequency ranges; 403 … 473 MHz that is commonly used in Europe and in USA, and now also on lower frequency range 320 … 380 MHz, that is an excellent choice for GNSS industry in Asia and utility business in the Middle East. It has an improved LCD display to enable easy configuration and more memory. Several interfaces will be available from serial (first variant) to USB.
- 60 MHz tuning range (320 … 380 MHz)
- 70 MHz tuning range (403 … 473 MHz)
- Selectable channel spacing 6.25 / 12.5 / 20 / 25 kHz @ 320 … 380 MHz
- Selectable channel spacing 12.5 / 20 / 25 kHz @ 403 … 473 MHz
- Many options for configuration, e.g. through radio
- Efficient diagnostics tools and accumulation of operation statistics data
SATEL-EASy+ will support the following software:
- SATEL NETCO DEVICE (Configuration)
- SATEL Configuration Manager (Configuration)
- SATEL NMS PC (Configuration and monitoring)
- SATEL SaTerm (Terminal SW for routing setup -configuration, SL commands and data tests)
- SATEL NETCO DESIGN (Configuration)
SATEL-EASy+ supports SATEL NMS PC and it is compatible with earlier radio modems operating in the same frequency range including SATELLINE-EASy, M3-TR4 based radios and SATELLINE-3AS NMS modems.
The benefits of network monitoring
- Enhanced reliability, through advance indication of anticipated faults and failures
- Reduced configuration and maintenance costs, through remote configuration
- An efficient tool for network development
If a problem occurs, for example, in an electricity or water network, SATEL-EASy+ radios transfer this data reliably in real time, which enables locating and repairing the failure fast, thus saving money.
Available models, 320 … 380 MHz:
- YM6030 SATEL-EASy+ without display, with encryption support
- YM6035 SATEL-EASy+ without display and encryption support
- YM6060 SATEL-EASy+ with display, with encryption support
- YM6065 SATEL-EASy+ with display, without encryption support
Available models, 403 … 473 MHz:
- YM6010 SATEL-EASy+ without display, with encryption support
- YM6015 SATEL-EASy+ without display and encryption support
- YM6050 SATEL-EASy+ with display, with encryption support
- YM6055 SATEL-EASy+ with display, without encryption support
The following variants are coming next:
1W variant with USB, ETH and BT interface
- For transmitting and receiving data and modem configuration
1W variant with SATEL-TR489 module
- Three frequency bands: licensed 403 … 473 MHz, license-free 856 … 876 MHz, license-free 902 … 928 MHz
- With AES encryption support, LCD user interface and function buttons
- Frequencies cover all continents
CONTACT US
| Frequency range | 320 … 380 / 403 … 473 MHz |
| Tuning range | 60 / 70 MHz |
| Channel spacing | 6.25 / 12.5 / 20 / 25 kHz selectable @ 320 … 380 MHz 12.5 / 20 / 25 kHz selectable @ 403 … 473 MHz |
| Modulation | 4FSK, 8FSK, 16FSK @ 320 … 380 MHz 4FSK, 8FSK, 16FSK, GMSK @ 403 … 473 MHz |
| Sensitivity BER <10E-3 (FEC ON) | -115 dBm @ 12.5 kHz (4FSK) / -113 dBm @25 kHz (4FSK) / -102 dBm @25 kHz (16FSK) |
| Interface | RS-232, -422, -485 |
| Data speed of radio interface | 9600 bps @ 12.5 kHz / 19200 bps @ 25 kHz (4FSK, FEC OFF) 7200 bps @ 12.5 kHz / 14400 bps @ 25 kHz (4FSK, FEC ON) 14400 bps @ 12.5 kHz / 28800 bps @ 25 kHz (8FSK, FEC OFF) 9600 bps @ 12.5 kHz / 19200 bps @ 25 kHz (8FSK, FEC ON) 14400 bps @ 12.5 kHz / 28800 bps @ 25 kHz (16FSK, FEC ON) |
| Carrier power | 0.01 … 1 W |
| Data speed of serial interface | 1200 – 115200 bps |
| Encryption support | AES128 as default / AES256 as an order option |
| Operating voltage range | +7 … +27.5 Vdc (-15% / +20%) |
| Power consumption | < 1.5 W (receive) < 5.5 (transmit 1 W) < 0.05 W (standby) |
| Size/Weight | 138 x 67 x 29 mm / < 350 g |

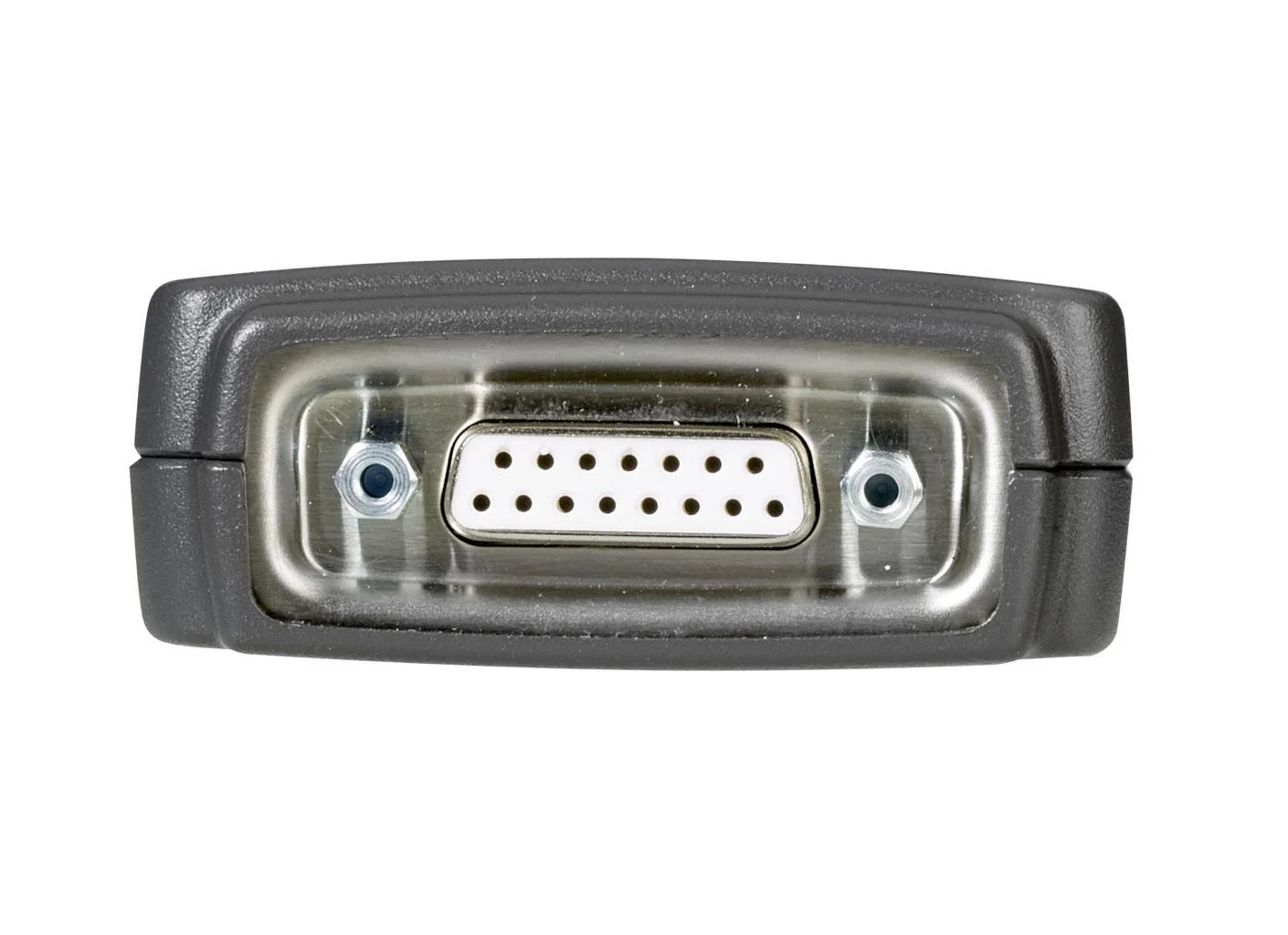

| Connectors | D15 / TNC female |
Values are subject to change without a notice.
| CRS-2M (YC0103) / CRS-2F (YC0104) | Interface cable, length 2 meter, includes power supply wires, with D15 / D9 male OR CRS-2F female -connectors |
| CRS-9M (YC0203) | Interface cable, length 2 meters, with D9 male / D9 male connectors |
| CRS-PB (YC0501) | Interface cable, length 2 meter, includes power supply wires, with D15 / D9 male -connectors for RS-485 interface |
| CRS-SAE-8-pin (YC0372) | Interface cable, length 2 meter, includes SAE power connector, with D15 / ODU 8-pin male- connectors |
| CRS-RJ45 (YC0280) | Interface cable, length 2 meter, with D15 / RJ45 male -connectors |
| CRS-TSU (YC0271) | Length 2 meters or 50 cm, with D15 male / D15 female connectors, to be used between radio modem and I-LINK 100 |
| CRS-NMS (YC0302) | Length 1.5 meters, with D15 male / 2 x D9 female connectors from Master modem to user system and NMS PC, including power supply wires |
| CRF-1 (YC1101) | RG58, lenght 1 meter with TNC male / TNC female -connectors |
| CRF-5F (YC1105) / CRF-5M (YC1106) |
RG-58, lenght 5 meter with TNC male / TNC female -connectors OR CRF-5M TNC male / TNC male -connectors |
| CRF-50 (YC1150) | Length 50 cm with TNC male / TNC male from band-pass filter to radio |
| ECOFLEX10 (YC1004) | Low loss (0.9 dB / 10 m) cable for cable lengths upto 20 meter with N or TNC -connectors |
| ECOFLEX15 (YC1005) | Low loss (0.6 dB / 10 m) cable for cable lengths over 20 meter with N -connectors |
| NARS-1F (YC0200) | Interface adapter with D15 male / D9 female –connectors, 650 mA fuse. Including power supply wires and programming switch |
| NARS-1F-4A (YC0204) | Similar than NARS-1F, but with 4A fuse |
| NARS-2 (YC0485) | Interface adapter with D15 male / screw connectors, 650 mA fuse adapter for RS-422 / 485 interface |
| Antennas | Half Wave, Quarter Wave, Helix, Directional and Omnidirectional Antennas |
| Power supply DIN (YP7524) | Power supply for DIN-rail, Input 100–240 Vac / Output 24 Vdc / 2.5 A. Size 125.2 x 102 x 32 mm |
| A-AC (YP0115) | Power supply for tabletop or wall mount usage. Input 100–240 Vac / Output 15 Vdc / 4.6 A |
