SATEL XPRS radio router is designed for serial data connectivity in mission-critical applications. It is a part of SATEL XPRS solution for applications requiring long-range connections, high reliability and independence of network. It also provides an excellent technology for back-up routing: the intelligence to automatic switchover is included.
The SATEL XPRS radio router can be used as a serial data radio modem and as a repeater in packet routing networks. When central unit is added to the radio unit, full TCP/IP functionality is obtained. The SATEL XPRS IP radio router consists of two separate modules; a radio unit and a central unit. The central unit together with the radio unit is typically used in a network as a master station or in locations where Ethernet connectivity is needed.
For radio router stations, the central unit is not necessary. SATEL XPRS radio router can be used in stations where a standard RS-connection is sufficient. The radio unit can operate as a transparent radio link; essentially replacing a wire with classic RS-232 based protocol. Various network topologies, from a simple point-to-point link to long-range point-to-multipoint systems with multiple repeaters, are available with the radio unit.
SATEL XPRS radio router’s benefits include
- Meets the mission critical connectivity requirements: high availability, long-range connectivity, easy and error-free deployment
- Integrated serial networking support and conversions
- Configuration is easy with NETCO, centralized configuration software
- Supreme reliability
- Cyber security: data encryption according to AES-128/AES-256 standards, built-in firewall, user authentication, secure browser access
Model and product code:

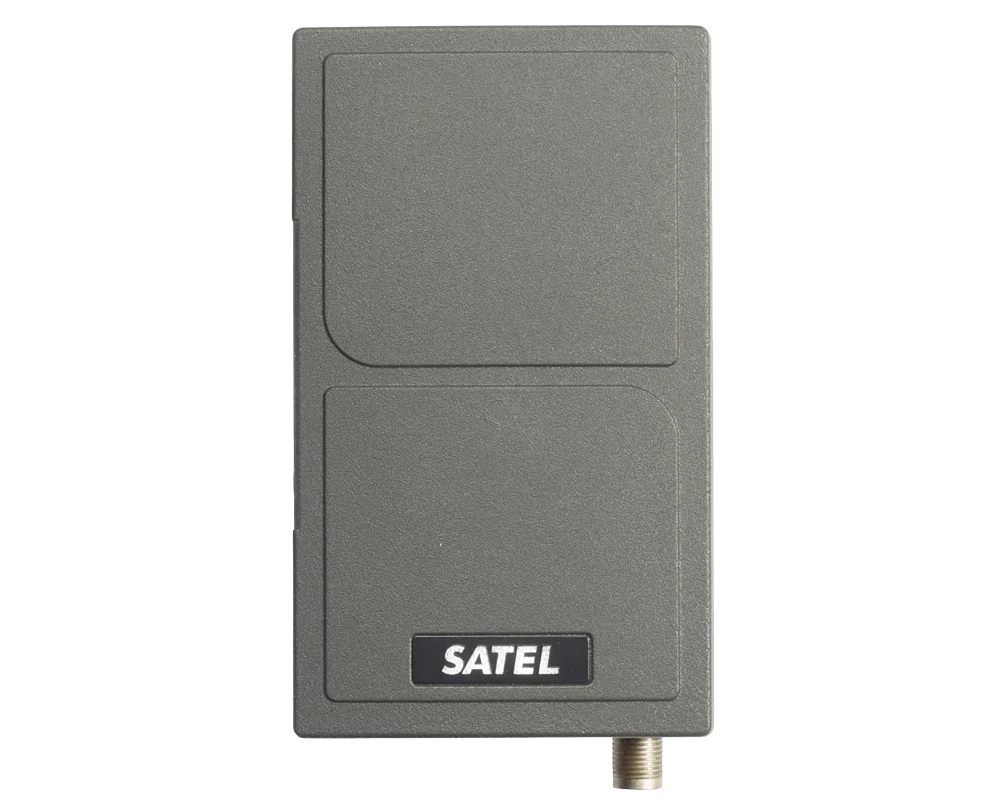

- SATELLAR XT 5R FSK (YF0100)
SATEL offers a wide range of accessories for the products, see here.
CONTACT US
| Frequency range | FSK: 360…485 MHz |
| Tuning range | 45 MHz |
| Channel width | FSK:12.5, 25, 150 kHz (software selectable)
Frequencies with 6.25 kHz channel spacing |
| Sensitivity/Carrier power | See the brochure |
| Interface | RS-232, RS-422/485 |
| Data speed | FSK: 230 kbps@150 kHz |
| Operating voltage range | +12.5 … +25 Vdc (-15% / +20%) |
| Power consumption | See the brochure |
| Size/Weight | 130 x 55.5 x 76.5 / 680 g |
| CRS-9 (YC0201) | Length 2 meters, with D9 male / D9 female connectors |
| CRS-9M (YC0203) | Length 2 meters, with D9 male / D9 male |
| RJ45, CAT6 (YC0750) | Length 1, 3 or 10 m cable |
| CRS-Y (YC0500) | Length 1.5 meters, with D9 male / 2 x D9 female connectors from Master modem to user system and NMS PC |
| CRS-KU4 (YC0290) | Length 1 meter, with D9 male / RJ45 from radio router to KU40 / KU52 products |
| CRF-1 (YC1101) | RG58, lenght 1 meter with TNC male / TNC female -connectors |
| CRF-5F (YC1105) / CRF-5M (YC1106) |
RG-58, lenght 5 meter with TNC male / TNC female -connectors OR CRF-5M TNC male / TNC male -connectors |
| CRF-50 (YC1150) | Length 50 cm cable TNC male / TNC male from band-pass filter to radio |
| ECOFLEX10 (YC1004) | Low loss (0.9 dB / 10 m) cable for cable lengths over 20 meter with N or TNC -connectors |
| ECOFLEX15 (YC1005) | Low loss (0.6 dB / 10 m) cable for cable lengths over 20 meter with N -connectors |
| Antennas | Halfwave, quarter wave, Helix, directional and omnidirectional antennas |
| PS-DIN-2 (YP0118) | Power supply for DIN-rail, Input 100–240 Vac / Output 24 Vdc / 2.5 A, size 78 x 93 x 56 mm |
| A-AC (YP0115) | Power supply for tabletop or wall mount usage, Input 100–240 Vac / Output 15 Vdc / 4.6 A |
| SATELLAR-PWR (YC0330) | Power cable, 1.5 m, 2.5 A fuse |
